Stockist of ANSI/ASME B16.5 WNRF and Pipe Flange Material

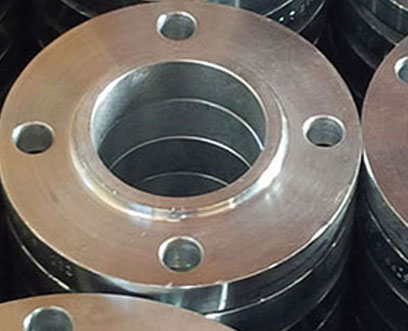

ASME B16.5 Flanges

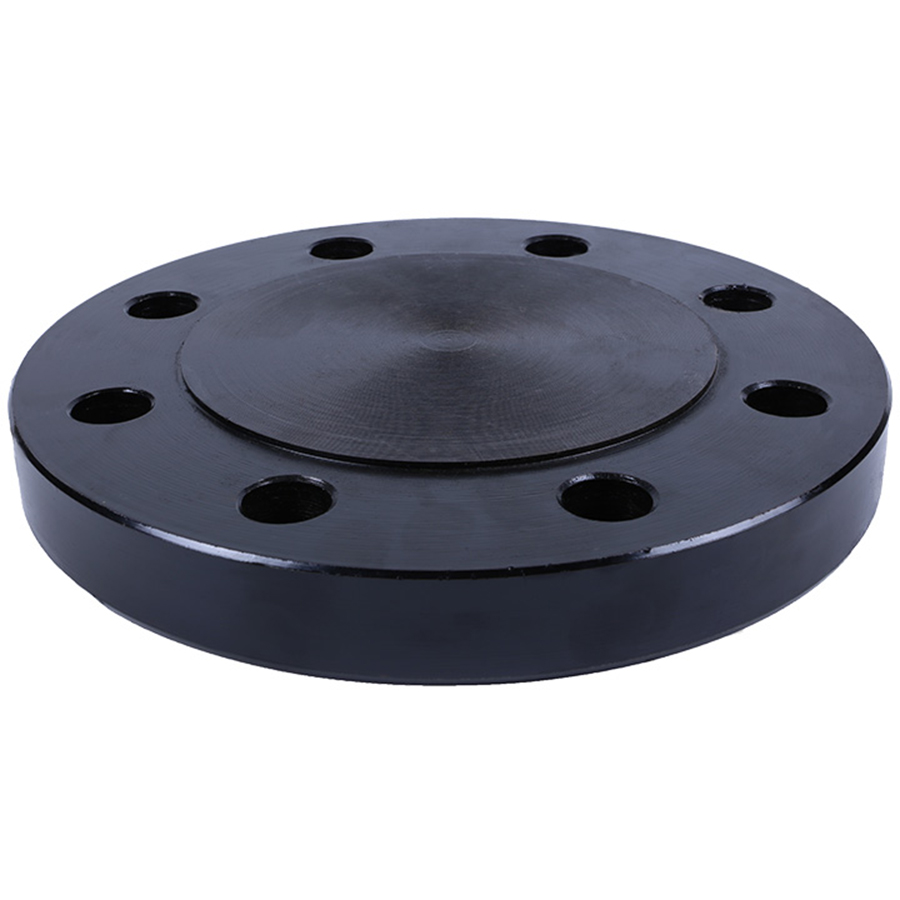

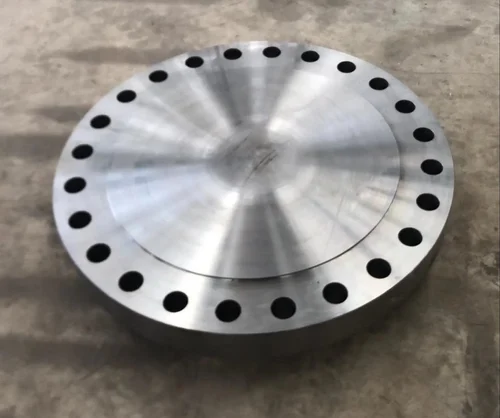

Blind Flanges ASME B16.5

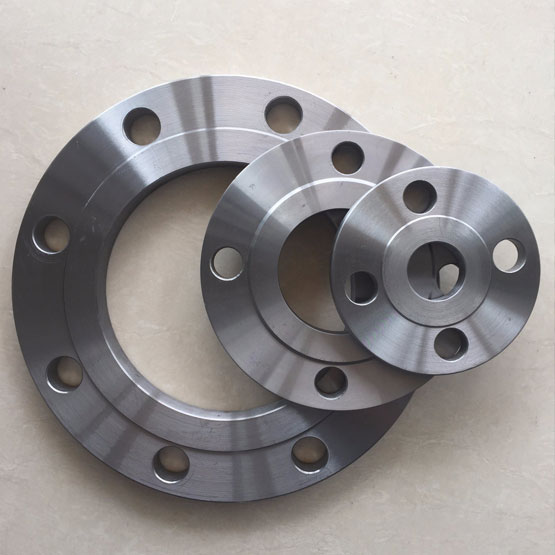

ASME B16 5 Slip On Flange

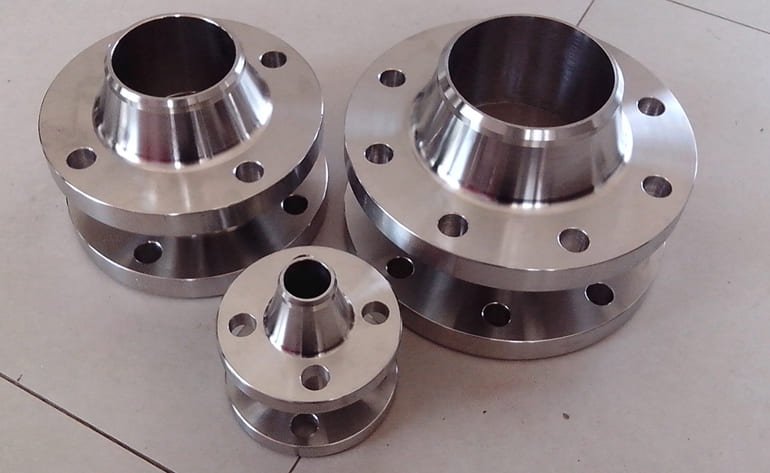

GearGlobe Industrial Supplies is a leading manufacturer and supplier of industrial flanges in Karnataka,
India. We provide high-quality flanges designed for durability, efficiency, and secure connections in various
piping systems across multiple industries.
Our industrial flanges are manufactured from premium-grade materials, including:Carbon Steel Stainless Steel
Alloy Steel Non-ferrous metals such as brass and copper
Each material is selected based on application needs, ensuring high performance, durability, and resistance to
extreme conditions.
Industrial flanges play a crucial role in connecting pipes, valves, pumps, and other equipment, facilitating
seamless assembly, disassembly, and maintenance. These components ensure a leak-proof and secure connection,
making them essential for critical industrial applications.
Flanges are typically circular with holes for bolting or welding, ensuring a strong and stable joint. They are
available in various shapes, sizes, and materials, customized to meet specific operational requirements.
GearGlobe’s industrial flanges are widely used in industries such as Oil & Gas Petrochemical & Chemical
Processing Power Generation Water Treatment Manufacturing & Construction
Our commitment to quality, precision, and customer satisfaction makes us a trusted name in the industrial
supplies sector. With a strong presence in Vijayapur, Karnataka, we serve businesses across India and global
markets, providing reliable, industry-compliant solutions tailored to your needs.
GearGlobe is Supplier of Industrial Flange in Karnataka Including Badami, Belagavi, Chamarajanagar,
Bhadravati, Bidar, Hassan, Bagalkot, Bidar, Chikkamagaluru, Kalaburagi, Kolar, Ballari, Belagavi, Bangalore,
Dakshina Kannada, Haveri, Kodagu, Bengaluru, Davangere, Halebid, Hassan, Hubballi-Dharwad, Kalaburagi, Kolar,
Madikeri, Mandya, Mangaluru, Urban, Chitradurga, Vijayapura, Gadag, Tumakuru, Mysuru, Raichur, Shivamogga,
Shravanabelagola, Shrirangapattana, Ramanagara, Kittur.
For detailed information and inquiries, please feel free to contact us.
Table of Content's
| Specification | ASME B16.5 Flange |
| Design For Size | ASA, ASME, DIN, PN, JIS, ANSI, BS, EN |
| Connect Type | RF, FF, RTJ, LMF, SMF, LJF. |
| Flanges Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| ASA Flanges Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Flanges Production Process | Forged, Heat Treated and Machined |
| ASME B16.5 Flanges Application | Nuclear Power Plant, Natural Gas Industry, Oil And Gas Industry, Water Pipeline Industry, Chemical Industry, Fabrication Industry, |
| Coating Flange Faces | Yellow Transparent, Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized, Zinc Plated |
| Flanges Standards | ASME B16.5, ASME B16.47 (Series A, Series B), ASME B16.38, EN-1092, BS10, DIN, PN, JIS, ISO, GOST, UNI, AWWA, MSS SP44. |
| Flanges Machining | Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc |
ANSI B16.5 Wn
RF A105 Flanges
Carbon Steel A105 RF
1500# Blind Flanges
ANSI B16.5 Forged
Stainless Steel Flanges
ANSI B16.5 Class150 RF
Stainless Steel Flanges
ANSI B16.5 150lbs
Weld Neck Reducing
Carbon Steel Flanges
2in 150# RF Blind
Flanges ANSI B16.5
Standard ANSI B16.5
Lf2 Wn 10'' Flanges
ANSI B16.5 150# Stainless
Steel Flanges
| NPS (Inches) | DN (mm) | FLANGE OD A MM | FLANGE THICKNESS D MM | SLIP ON FLANGE WEIGHT (KGS) | WELD NECK FLANGE WEIGHT (KGS) | BLIND FLANGE WEIGHT (KGS) |
|---|---|---|---|---|---|---|
